SOPHISTICATED DESIGN FOR SIMPLE OPERATION

MEDUMAT Standard² is your reliable partner during an emergency response – The intuitive emergency ventilator offers maximum safety for the patient and the user thanks to numerous features.

Overview

Flexible Application

The device can be individually configured to suit your needs and can thus be used for a wide range of applications.

Monitoring

Flow measurement and CO2 measurement for improved monitoring.

Battery Management

Li-ion rechargeable battery with a runtime of up to 10 hours.

Connectivity

Digital documentation via Bluetooth® data transmission.

Resuscitation Capabilities

Specific mode for CPR with the innovative CCSV ventilation mode.

Rapid Sequence Induction

Supports induction of anaesthetic with the RSI mode.

2.5kg Weight

Lightweight device suitable for ground and air emergency medical services.

Hygiene Filter

Filter protects the device from viral and bacterial contamination.

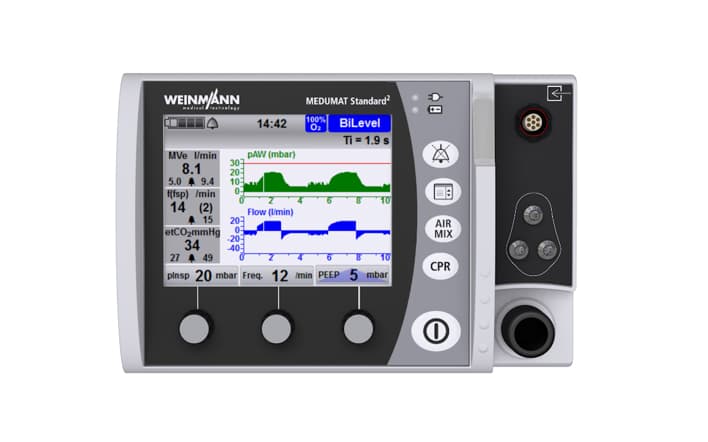

You will get a completely new view of modern ventilation with MEDUMAT Standard², the successor to MEDUMAT Standard and MEDUMAT Standard^a. Developed in close cooperation with users, the device boasts a monitor with a large color display that shows all major respiratory parameters. The familiar color coding, e.g., for patient selection, allows for intuitive operation. Safety is ensured by clearly organized operating elements and symbols, effective acoustic and visual alarms and other details.

System

RELIABLE VENTILATION

Guideline-compliant resuscitation with the help of the unique CPR mode
Assistance with anesthesia induction in pre-hospital setting with use of RSI mode
Non-invasive ventilation via the integrated CPAP mode
Faster and simpler initiation of ventilation by means of height setting or use of emergency modes
Optimised monitoring – 5-inch TFT screen containing all relevant information
Low weight of 2.5 kg makes device suitable for ground and air emergency medical services
High level of mobility ensured thanks to the battery life of up to 10 hours
Simple, intuitive operation via flat menu structures and customisable preconfiguration of ventilation parameters.

CPR MODE

A particularly important aspect when the patient needs to be resuscitated is that the CPR mode guides the responder safely through cardiopulmonary resuscitation in line with the guidelines.

Increases patient safety and improved ergonomics: MEDUMAT Standard² replaces bag-valve-mask ventilation
Mask securely held in place with two hands thanks to the triggering of breaths close to the patient using the MEDUtrigger
Lower risk of hyperventilation due to a fixed adjustable frequency
Constant tidal volume lowers the risk of volutrauma
Lower risk of barotrauma thanks to individually adjustable pressure limit
Enhanced safety from reliable alarm function
Integrated CPR time information for an improved overview
No ventilation artefacts during the ECG analysis phase of the defibrillator due to ventilation pause function
Individual configuration options of the CPR mode for greater flexibility
Optional: Capnography for checking tube position and improved detection of ROSC

CCSV MODE

In CCSV (Chest Compression Synchronized Ventilation) mode, a mechanical breath is initiated in sync with each chest compression. This means no gas volume escapes from the lungs and the pressure in the lungs provides support during the chest compression.

Automatic detection of chest compressions
Uninterrupted chest compressions
Can be used with mechanical chest compression devices
Easy to integrate into the standard resuscitation procedure
Improved arterial pressure
Improved gas exchange
Improved blood circulation

CPAP MODE

Non-invasive CPAP therapy via a mask offers many advantages. A prerequisite is that the patient is awake and breathing spontaneously. A particularly important aspect in emergency medicine is that CPAP therapy can be initiated immediately by EMS field providers.

Improved patient outcome in cases of acute respiratory insufficiency with CPAP therapy**
ASB pressure support for differentiated non-invasive ventilation optionally available
Lower oxygen consumption compared to Flow CPAP systems
High level of safety thanks to apnea monitoring

RSI (RAPID SEQUENCE INDUCTION) MODE

Rapid Sequence Induction, a shortened form of anesthesia induction, is an important application in emergency ventilation. It is used if the patient needs to be intubated particularly quickly. The RSI mode of MEDUMAT Standard² has the right function for every step of the treatment.

Preoxygenation

Supply of 100% oxygen for the spontaneously breathing patient
Reliable monitoring of spontaneous breathing by means of volume and frequency monitoring (optional)
Reliable alarms for prolonged apneic phase

Manual triggering of ventilator breath with MEDUtrigger

In an emergency the patient can be manually ventilated with the use of the Double-C grip and MEDUtrigger

Position check of tube

After successful intubation, the user can confirm correct placement of thetracheal tube with MEDUtrigger and the optional capnography
After a position check, the device can be switched to continuous ventilation (IPPV or BiLevel + ASB) at the touch of a button

Specification

Technical Specification

Dimensions:	206 mm x 137 mm x 130 mm
Weight:	Approx. 2.5 kg
Temperature (operating conditions):	-18 °C to +50 °C (0 °C to +40 °C with CO₂ measurement)
Height above sea level (operating conditions):	-500 m to 5 000 m
Degree of protection against: – Ingress of solid foreign bodies – Ingress of dust – Ingress of water with harmful effect	IP54
Resistance to shock and vibration:	EN 1789 EN 794-3 ISO 10651-3 RTCA DO-160 MIL-STD 810 G
Battery runtime (typically):	Up to 10 h
Power supply:	12 to 15 V or 100 to 240 V / 50 to 60 Hz with external power supply unit
Ventilation modes (standard):	IPPV CPR RSI CPAP Demand
Ventilation modes (optional):	SIMV SIMV + ASB S-IPPV CPAP + ASB PCV aPCV BiLevel + ASB PRVC + ASB CCSV
Monitoring:	Airway pressure Optional: Expiratory flow/volume Capnography etCO₂ trend Chest compression rate (only with CCSV)
Other functions:	CCSV mode for resuscitation RSI mode for induction of anesthesia Bluetooth® data transmission option Night Vision Goggles option
FiO₂:	AirMix (approx. 60%) or 100%
Tidal volume:	50 ml to 2 000 ml
Ventilation rate:	5/min to 50/min I:E: 1:4 to 4:1, 1:1 in CPR Manual
PEEP:	0 mbar to 30 mbar
Further standards used:	EN 60601-1 EN 60601-1-2 EN 794-3 ISO 10651-3 EN 13718-2

Application

MORE FUNCTIONS FOR EMS

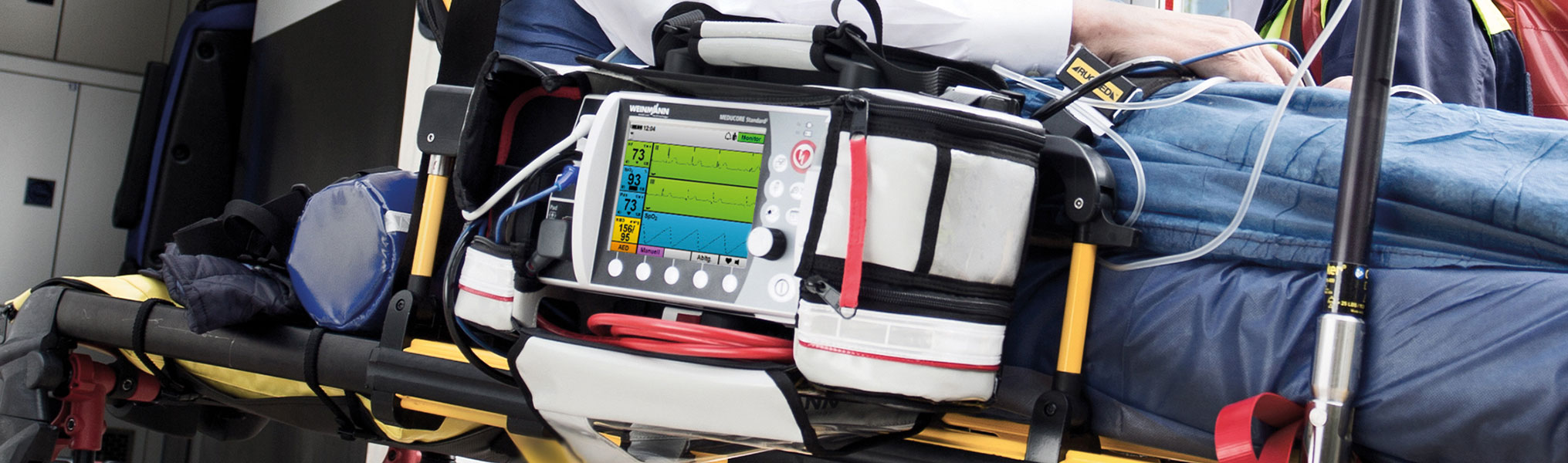

In pre-hospital treatment, during the transport of ventilated patients, in the emergency or trauma room, the ergonomic and simple operation of MEDUMAT Standard² sets a new standard for therapeutic safety. This user-friendly perspective on emergency and transport ventilation is unmatched.

MEDUMAT Standard² can be adjusted to any circumstances and users. In addition to IPPV, the device is equipped with the modes CPR (for cardiopulmonary resuscitation), RSI (for rapid sequence induction), Demand and CPAP (optionally with ASB). Users also can activate the optional volume-controlled modes SIMV, S-IPPV and inhalation and the pressure-controlled modes PCV, aPCV, BiLevel + ASB and PRVC + ASB, and a CO2 monitoring mode. All settings are based on current requirements such as the ERC Resuscitation Guidelines. Settings can be customised upon request.
