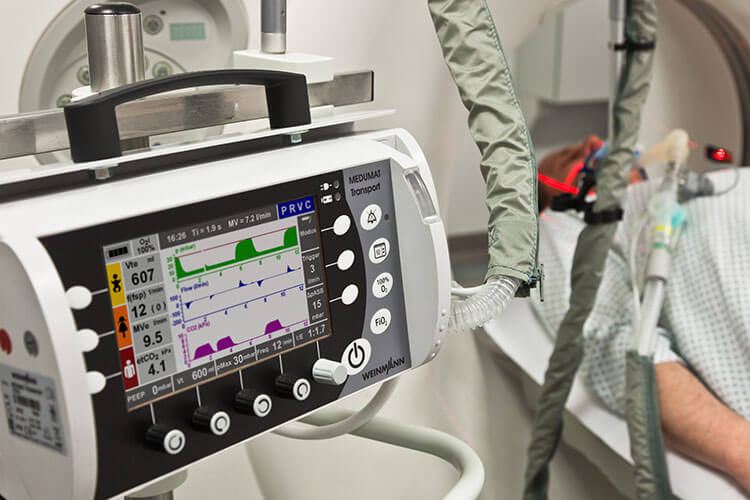

Technology that adapts to the situation. MEDUMAT Transport is a reliable device at all times and in any environment – whether you are at the scene of an emergency, in an ambulance, in a helicopter, or at a hospital.
Immediate Use

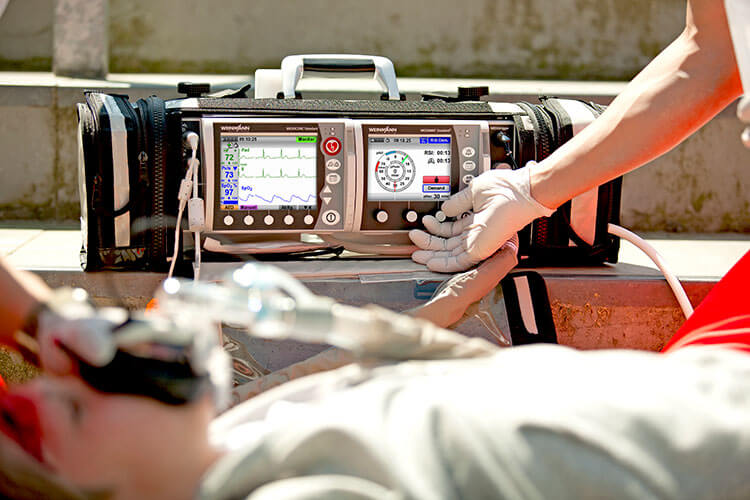

Pre-configured modes for infants, children or adults. Initiate immediate treatment by entering the patient’s height.
Ventilation Modes

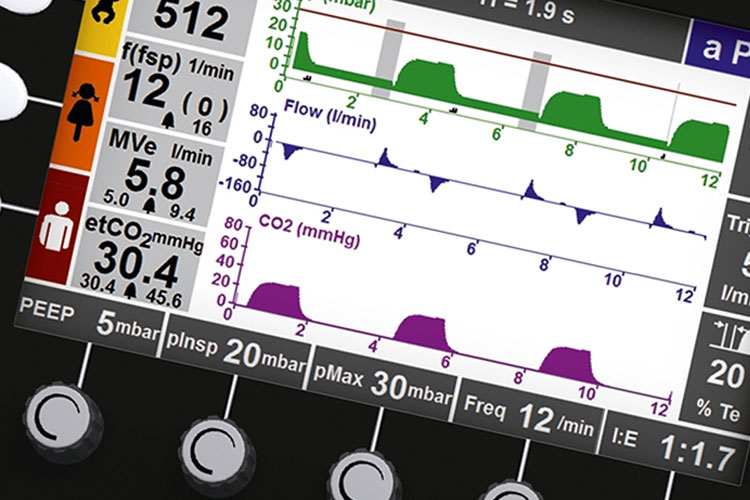

Displays up to three curves (airway pressure, flow and etCO2) simulataneously along with other important measurements.
Battery Management
Li-ion rechargeable battery with a runtime of approximately 7.5 hours.
Connectivity
Wireless data transmission via Bluetooth® (optional).
Oxygen Therapy

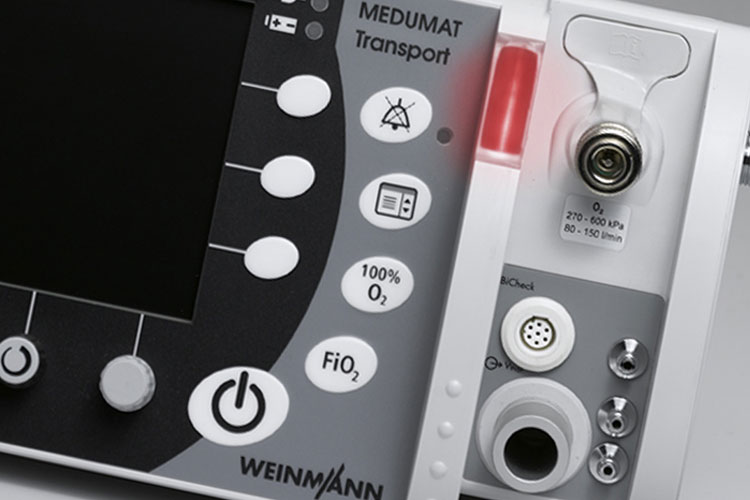

Two compressed gas connections for an uninterrupted supply of oxygen.
Intuitive Operation

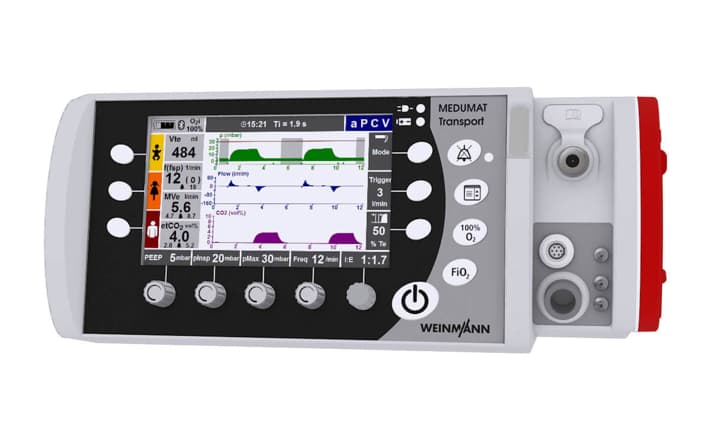

Large clear display and easy-to-use function keys simplify and speed up device operation.
PRVC Mode
Pressure Regulated Volume Controlled mode provides lung-protecting ventilation at trusted volume-controlled settings.
Hygiene Input Filter
An optionally available hygiene filter protects the interior from dust particles and contamination by bacteria or viruses.

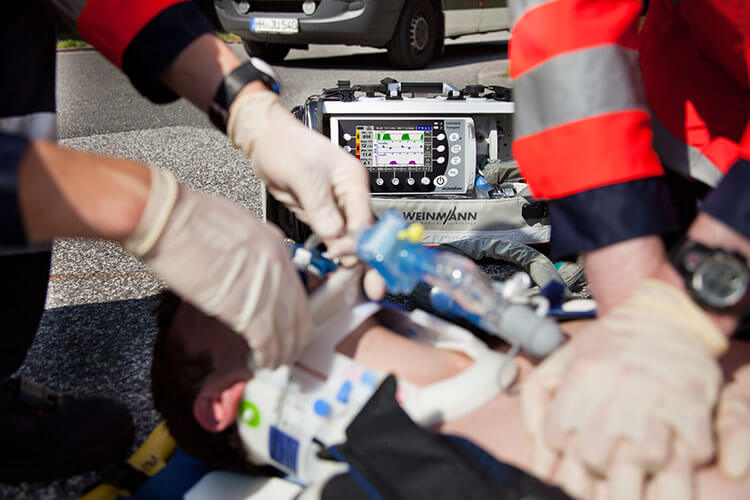

MEDUMAT Transport provides primary emergency medical care and secondary transport for emergency and intensive-care transport patients. The device owes its great flexibility to a wide range of ventilation options – three pressure-controlled and three volume-controlled modes plus PRVC and the activation of non-invasive ventilation in all modes.
Due to the ventilator’s clarity, simple operation and intuitive user navigation and choose the equipment we are confident that you will feel that it meets and exceeds your requirements. Depending on your requirements, you can order MEDUMAT Transport with or without CO2 measurement (capnography). With capnography and flow measurement, you have excellent ventilation monitoring, which we believe is an essential component in any ventilator.
| Dimensions with a hygiene filter: | 364 mm x 163 mm x 149 mm |
| Dimensions without a hygiene filter: | 345 mm x 163 mm x 149 mm |
| Weight: | 4.5 k |
| Temperature (operating conditions): | -18 °C to +50 °C (0 °C to +40 °C with CO₂ measurement) |
| Height above sea level (operating conditions): | -500 m (up to approx. 3 500 m |
| Degree of protection against: – Ingress of solid foreign bodies – Ingress of dust – Ingress of water with harmful effect |
IPX4 |
| Resistance to shock and vibration: | EN 1789 EN 794-3 ISO 10651-3 RTCA DO-160 MIL-STD 810 G |
| Battery runtime (typically): | Approx. 7.5 h |
| Power supply: | 12 to 15 V or 100 to 240 V / 50 to 60 Hz with external power supply unit |
| Ventilation modes (optional): | PCV aPCV BiLevel + ASB CPAP + ASB PRVC + ASB |
| Monitoring: | Airway pressure Expiratory flow/volume Capnography (optional) |
| Other functions: | Bluetooth® data transmission option Night Vision Goggles option Can be operated with medical compressed air and concentrator oxygen (93% O₂) |
| FiO₂: | 40% to 100% |
| Tidal volume: | 50 ml to 2 000 ml |
| Ventilation rate: | 0/min to 60/min I:E: 59:1 to 1:59 |
| PEEP: | 0 mbar to 30 mbar |
| Further standards used: | EN 60601-1 EN 60601-1-2 EN 794-3 |

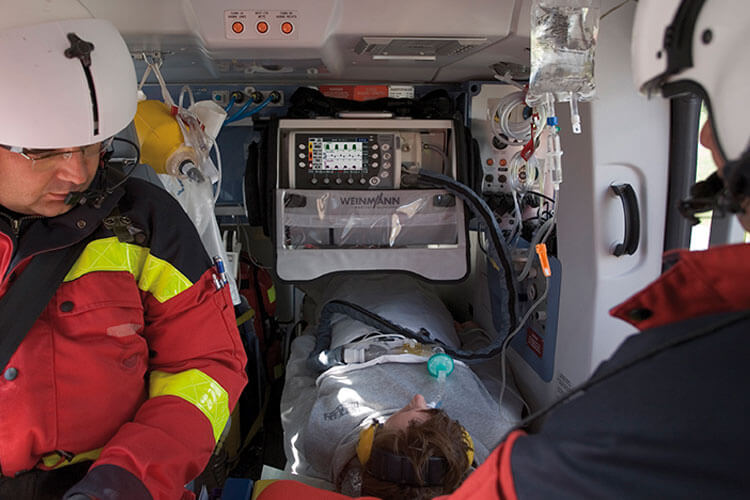

Fully functional in the air, on the ground or in the hospital. Given its robust construction, MEDUMAT Transport complies with all major standards, such as RTCA/DO 160 and EN 1789. The ventilator also takes into account the increasing importance of epidemics and highly resistant microbes. Even in contaminated environments, the hygiene input filter reliably protects the device‘s interior from viruses and bacteria. To make sure that everything runs smoothly after your purchase, WEINMANN Emergency offers you a broad network of service partners for extensive training and excellent service.
Despite the high levels of surrounding noise during an air rescue, the MEDUMAT Transport will not go unnoticed in an emergency thanks to its alarm light. Flexible device operation is made easy by the ability to access connections and controls from the front, and individual brackets ensure safe installation.
MEDUMAT Transport has a night mode with a dimmable display so that the user can easily read the parameters at any time. The bright alarm light can also be deactivated if needed to prevent a glare effect. The NVG mode is also designed for use with night vision devices.
MEDUMAT Transport complies with all the necessary standards for use in air rescue services: MIL-STD 810G (Method 514.6), RTCA/DO 160E, EN 60601-1-2, EN 794-3, and EN 13718-1.
