ROBUST PRODUCTS FOR EFFECTIVE CLEARING OF THE AIRWAYS
Clearing of the airways is one of the first measures to be taken in order to ensure adequate oxygen supply.
ACCUVAC Pro
Overview
0%
Variable Uses
Four pre-defined suction levels.
Flexible Operation
Adjust the suction capacity to every situation. Can be used on infants, children and adults.
Safe & Hygienic
Safe secretion collection in auto-clavable reusable secretions canister with disposable bacteria filter and overflow protection or disposable Serres® suction bag with integrated bacteria filter.
Robust
Non-tip housing with low center of gravity. Robust housing made of impact-resistant materials.
Reliable
Automatic function check with rapid visual and acoustic feedback.
Battery Management
Modern lithium-ion rechargeable battery with greater run time of more than 60 minutes.
Clearing the patient’s airways of obstructions is the first life-saving measure in an emergency situation. ACCUVAC Pro is the right partner for suctioning a patient’s mouth and throat or endotracheal or bronchial areas. The device’s high suction capacity and simple operation enable professional users to provide effective and proven treatment to the patient at the scene of an emergency.
By means of the four pre-defined suction levels, the user can set the ideal suction capacity in ACCUVAC Pro for use with small children to adults. In addition to suctioning airways, the ACCUVAC Pro also deflates vacuum splints and mattresses.
System
CONVENIENT USE, BROAD APPLICATION
- High suction capacity of about 34 litres/minute at -0.8 bar (at device inlet)
- User can change battery without tools
- Modern lithium-ion rechargeable battery with long operating time, no calibration of battery required
- Four pre-defined suction settings for selection by user
- Automatic function check with quick visual and acoustic feedback
- Safe secretion collection into autoclavable reusable secretions canister with bacteria filter and overflow protection or disposable Serres® suction bag with integrated bacteria filter

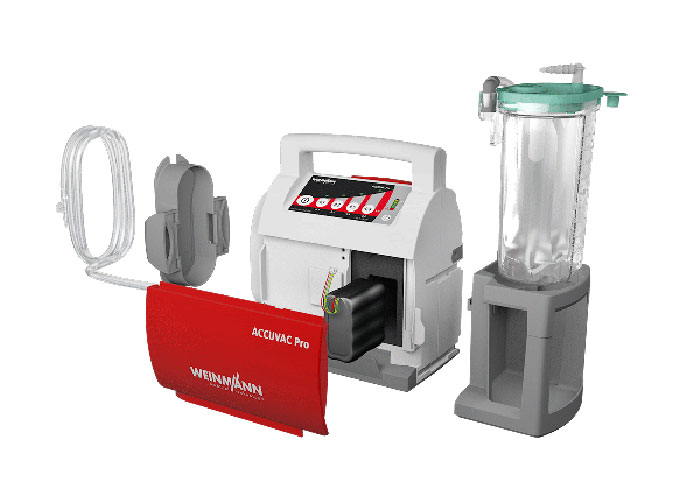

EASY TO CLEAN AND DISINFECT
Almost all the parts of ACCUVAC Pro can be removed, cleaned and disinfected without the need for any tools. This applies to:
- The base of the device
- The holder for the suction tube
- The holder for the canister system (reusable and disposable)
- Canister systems (reusable and disposable)
Specification
Technical Specification
| Dimensions: | 370 mm x 277 mm x 146 mm |
| Weight: | Approx. 4.3 kg |
| Temperature (operating conditions): | -5° C to + 50° C |
| Height above sea level (operating conditions): | Up to 5 000 m |
| Degree of protection against: – Ingress of solid foreign bodies – Ingress of dust – Ingress of water with harmful effect |
IP34D |
| Resistance to shock and vibration: | EN 1789 RTCA DO-160G EN 10079-1 |
| Power supply: | 12 to 15 V or 100 to 240 V / 50 to 60 Hz with external power supply un |
| Battery runtime (typically): | 60 min |
| Other functions: | Automatic function check |
| Suction capacity at the device inlet | Approx. 34 l/min |
| Vacuum setting: | Predefined levels -0.1 bar -0.2 bar -0.5 bar -0.8 bar |
| Classification as per EN ISO 10079-1: | High vacuum/high flow |
| Canister system volume: | 1 000 m |
| Further standards used: | EN 60601-1 EN 60601-1-11 EN 60601-1-12 |
Application
MAXIMUM EASE OF USE IN AN OUT-OF-HOSPITAL ENVIRONMENT
- Quickly where it needs to be: Select one of the 4 vacuum levels by pressing a button
- Easy to operate: Clear control panel with LEDs to display the vacuum level reached
- Extensive accessories to hand at once: The accessories required can be stored in the wipe-down accessories bag or protective bag
- Easy to transport: Ergonomic carrying handle, shoulder strap, vehicle wall mounting to EN 1789 with charging interface
- High performance: Easily-replaced lithium-ion rechargeable battery with a battery runtime of over 60 minutes, suction performance of approx. 34 l/min
- Simple to prepare and reprocess: Automatic function check and components which are easy to remove and disinfect
- ACCUVAC Pro can take a lot: Rugged housing made of impact-resistant materials
