INTUITIVE OPERATION, SMALL AND LIGHTWEIGHT

The smallest ventilator from Weinmann, the MEDUMAT Easy CPR offers ergonomic design, intuitive operation and a size and weight that is extremely easy to transport. It is the perfect introduction to mechanical ventilation and it supports less experienced users through voice prompts and other features during ventilation and resuscitation.

Overview

Small, Light, & Rugged

Lightweight at only 600g – ideal for bags, emergency backpacks or wall mounting.

Low Risk

Reduced risk of gastric insufflation, barotrauma, and hyperventilation compared to bag mask ventilation.

Mechanical Ventilation

Selection of ventilation parameters with only one knob. Dial for tidal volume and ventilation frequency.

CPR Mode

CPR mode with clear voice prompts and issue of a metronome sound for chest compression(s).

Anaesthesia Induction

Valuable support during an emergency, even when the patient needs to be intubated.

Intuitive Operation

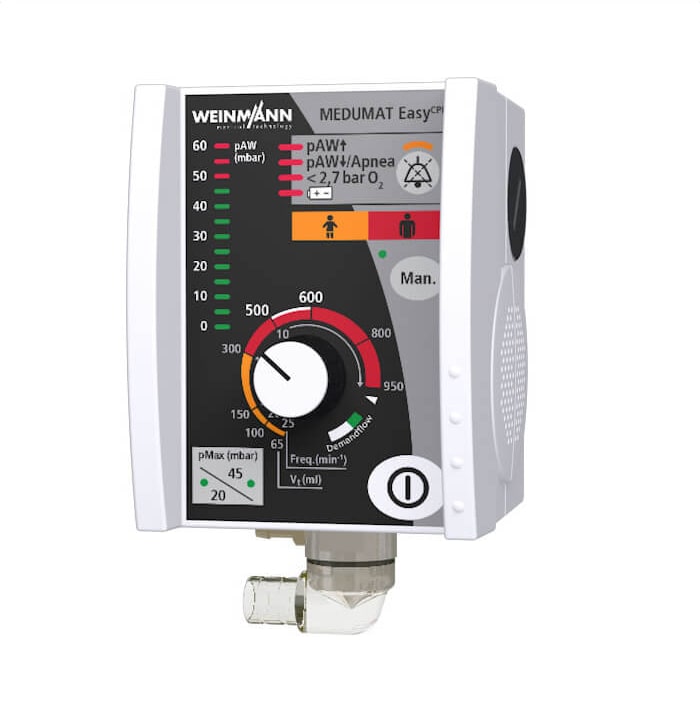

Easy and safe to use through a colour legend and a single multistep flow selector.

MEDUMAT Easy CPR was specially developed for emergency ventilation during and after resuscitation. Trigger a ventilator breath right from the mask. The ventilator ensures the highest degree of safety by giving clear voice prompts that lead the user through clear CPR procedures.

System

INCREASED SAFETY AND BETTER OUTCOMES

Fast settings procedure
Metronome > 100/min
Two ventilator breaths within max. 5 seconds
Ergonomic and simple operation
Low weight
Easy to transport
Constant tidal volume
No hyperventilation
Low risk of gastric insufflation

CPR Mode

The user will be guided through the processes by means of clear and straightforward voice prompts, which leads to minimal risk of user error.
The mechanical breaths can be administered close to the patient and manually, which is ergonomically superior and ensures minimal leaks during mask ventilation.
A metronome in CPR mode provides the ideal chest compression frequency for cardiopulmonary resuscitation.

MEDUMAT Easy CPR can easily be integrated into the resuscitation process and simultaneously provides guideline-conforming therapy in accordance with ERC guidelines (European Resuscitation Council Guidelines for Resuscitation):

Compliance with the recommended tidal volume: 6 to 7 ml/kg body weight, 500 to 600 ml at a frequency of 10/min.
Acoustic metronome signal with a frequency of 100/min helps to maintain the recommended compression frequency.

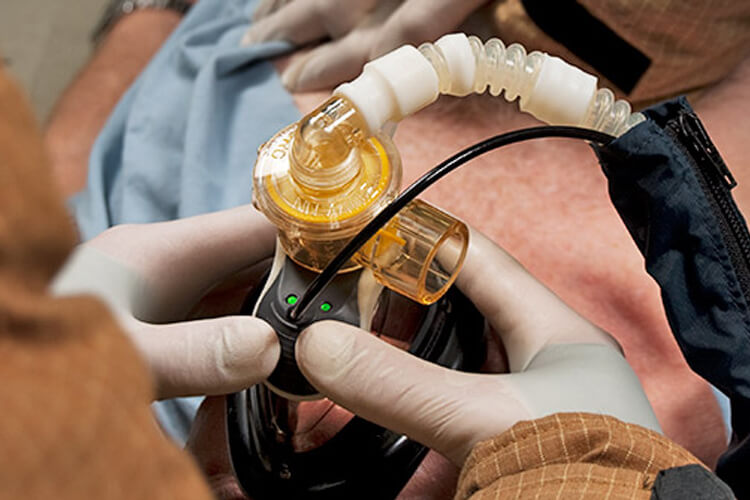

Using the MEDUtrigger for manually administering mechanical breaths allows the helper to have both hands free to ensure the mask has a good seal.
Only a maximum of five seconds is needed to administer two mechanical breaths in CPR mode.

ANESTHESIA INDUCTION

MEDUMAT Easy CPR offers valuable support during an emergency, even when the patient needs to be intubated:

In demand flow mode, the patient receives 100% oxygen through the mask.
In CPR mode, the user can, if necessary, administer mechanical breaths at any time using the MEDUtrigger – directly on the mask.
A tube position check can easily be carried out by the CapnoDura Combi CO2 detector.
If the airway is secured, a switch to continuous mode (IPPV) with the pressure limit for intubated patients will made.

Specification

Technical Specification

Dimensions:	100 mm x 145 mm x 90 mm
Weight:	Approx. 0.6 kg
Temperature (operating conditions):	-18 °C to +60 °C
Height above sea level (operating conditions):	-500 to 3 000 m
Degree of protection against: – Ingress of solid foreign bodies – Ingress of dust – Ingress of water with harmful effect	IP54
Resistance to shock and vibration:	EN 1789 EN 794-3 ISO 10651-3 RTCA DO-160
Battery runtime (typically):
Battery replacement interval:	2 year
Power supply:	No external power supply required
Ventilation modes (standard):	IPPV SIMV
Monitoring:	Airway pressure
Other functions:	Manual ventilation via MEDUtrigger Voice prompts can be activated
FiO₂:	100%
Tidal volume:	65 ml to 950 ml (via minute volume)
Ventilation rate:	10/min to 25/min I:E: 1:2 (Vt ≤ 150 ml) 1:3 (Vt > 150 ml) 1:1 in CPR mode PEEP: 2.5 to 10 mbar via external PEEP valve
PEEP:	2.5 to 10 mbar via external PEEP valve
Further standards used:	EN 60601-1 EN 60601-1-2 EN 794-3 ISO 10651-3

Application

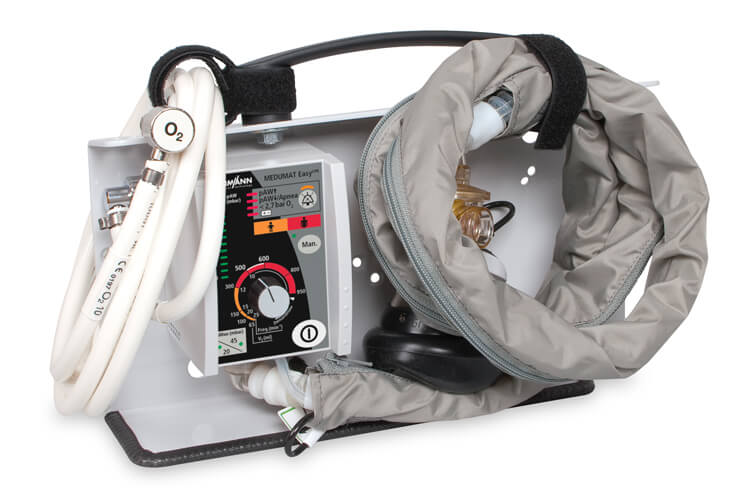

Thanks to its compact dimensions, MEDUMAT Easy CPR can be integrated flexibly or stored in a bag or an emergency backpack while saving space. It is also possible to store the device (if necessary, in connection with function-enhancing modules) in the LIFE-BASE portable system.

Dimensions: 10 x 14.5 x 9 cm (approx. 1.3 l)
Easy to carry for users – light at 600 g
Tested against shock and vibrations in accordance with EN 1789 and RTCA/DO 160
