THE VENTILATION STANDARD FOR PROFESSIONALS

MEDUMAT Standard^a offers you everything you need for reliable emergency ventilation. Users around the world are impressed by its especially simple operation and ruggedness.

Overview

Reliability

Automatic self-test when ventilator is switched on.

Alarm System

Visual and acoustic alarms warn of acute problems and ensures high level of safety.

Emergency Ventilation

Controlled and assisted ventilation options available. Set constant values for tidal volume, ventilation frequency and minute volume.

Assisted Ventilation

When the patient’s respiratory efforts reach the trigger threshold, the device delivers a mechanical breath to the patient.

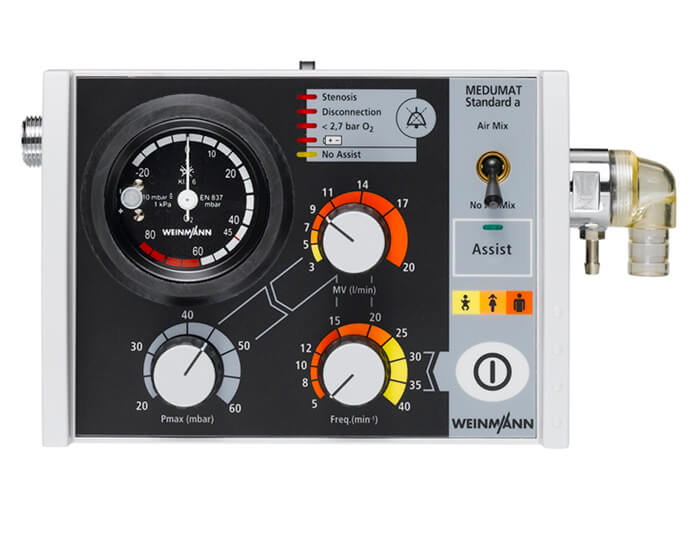

Simple Operation

Colour coding and arrow system simplifies fast and safe parameter settings for each patient group.

Easy to Transport

When placed on the portable LIFE-BASE system, the device has practically unlimited mobility.

With controlled ventilation and assisted ventilation, the MEDUMAT Standard^a provides you with the ventilation options you require in an emergency. The diverse modules let you add many supplemental functions, such as CPAP therapy, to MEDUMAT ventilators. When there‘s not a second to lose, the well-designed operating panel with special symbols and colors help you to quickly set the right ventilation parameters. When placed on the portable LIFE-BASE system, the MEDUMAT Standard^a has practically unlimited mobility.

System

RELIABLE VENTILATION

Simple operation and easy to transport
Automatic self-test when ventilator is switched on
Colour coding and arrow system simplifies fast and safe parameter settings for each patient group
Settings for respiratory minute volume, respiratory rate and maximum ventilation pressure are individually adjustable
Visual and acoustic alarms warn of acute problems such as stenosis, disconnection, loss of oxygen pressure, inadequate battery capacity, system failure, no triggering by patient
Complies with EN 1789

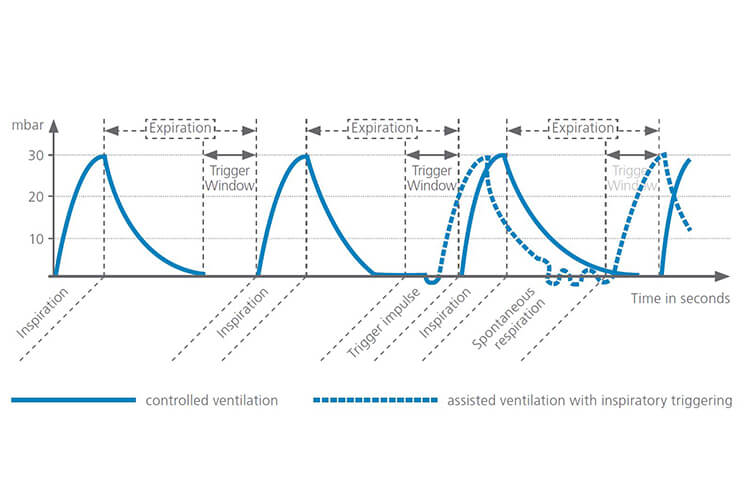

ASSISTED VENTILATION

Under assisted ventilation MEDUMAT Standard^a gives the patient a mechanical breath in response to an inspiratory trigger.
When the patient‘s respiratory efforts reach the trigger threshold, MEDUMAT Standard^a delivers a mechanical breath to the patient.
If the patient does not trigger a breath within the window for inspiration, the patient will receive controlled ventilation.

Specification

Technical Specification

Dimensions:	190 mm x 110 mm x 90 mm
Weight:	Approx. 1.1 kg
Temperature (operating conditions):	-18 °C to +60 °C
Height above sea level (operating conditions):	-500 to 3 000 m
Degree of protection against: – Ingress of solid foreign bodies – Ingress of dust – Ingress of water with harmful effect	IP24
Resistance to shock and vibration:	EN 1789 EN 794-3 ISO 10651-3 RTCA DO-160
Battery runtime (typically):
Battery replacement interval:	2 year
Power supply:	No external power supply required
Ventilation modes (standard):	IPPV SIMV
Monitoring:	Airway pressure
Other functions:	Assisted ventilation
FiO₂:	AirMix (approx. 60%) or 100%
Tidal volume:	75 ml to 4 000 ml
Ventilation rate:	5/min to 40/min I:E: 1:1,67 Between 1:1 and 1:2,33 in assisted ventilation
PEEP:	2.5 to 10 mbar via external PEEP valve
Further standards used:	EN 60601-1 EN 60601-1-2 EN 794-3 ISO 10651-3

Application

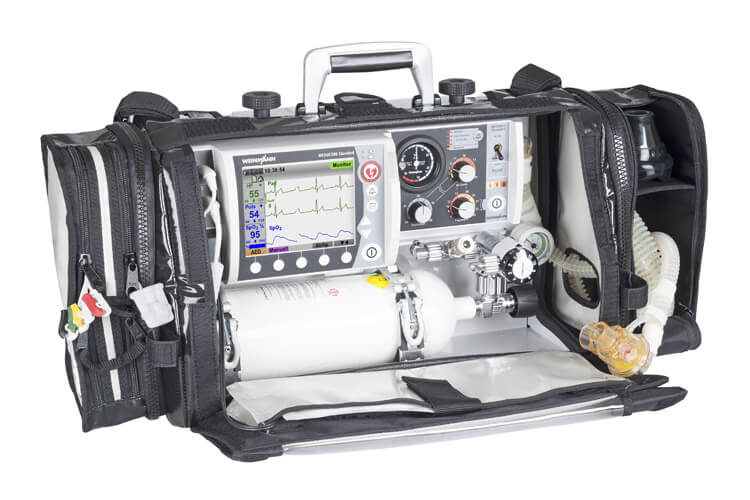

UNLIMITED MOBILITY

When placed on our portable LIFE-BASE system, MEDUMAT Standard^a has practically unlimited mobility.
